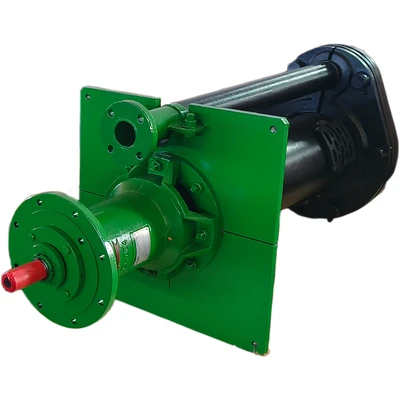

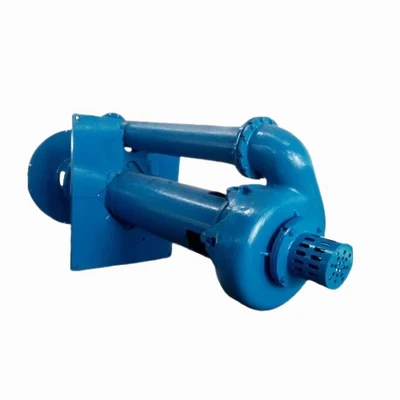

Getting the right flow rate from a slurry pump is not as simple as turning a valve and hoping for the best. Too much flow, and you waste energy, accelerate wear, and potentially overwhelm downstream equipment. Too little flow, and your sump overflows, solids settle out, and production suffers. The sweet spot—optimal flow—depends on your slurry properties, piping system, and pump characteristics. CNSME PUMP vertical slurry pumps offer several features that help operators find and maintain that sweet spot. Unlike fixed-speed horizontal pumps that run at whatever speed the motor provides, CNSME vertical pumps can be fine-tuned to deliver exactly the flow you need, when you need it. Let me walk through the practical methods for optimizing flow rates with these versatile machines.

Using Variable Frequency Drives to Match Demand

The most effective tool for flow optimization is the variable frequency drive. A VFD allows you to slow the pump down or speed it up, shifting the entire pump curve. When your sump inflow is low, you reduce pump speed to match. When inflow surges, you increase speed. This matching prevents the pump from running faster than necessary, which saves energy and reduces wear. CNSME vertical pumps are excellent candidates for VFD operation because their stiff shafts and robust bearings handle the wider speed ranges that VFDs allow. A typical VFD-controlled CNSME pump can operate from about thirty percent to one hundred ten percent of its rated speed. At low speeds, wear from abrasion drops dramatically because particle impact velocity is lower. At high speeds, you get the flow you need for peak conditions. The key is programming the VFD correctly. A simple constant-pressure or constant-level control algorithm works, but more advanced setups use flow meters or sump level sensors to adjust speed proportionally to inflow. CNSME can provide VFD sizing guidelines and control logic recommendations for their pumps, ensuring that the drive and the pump work as a matched system rather than two components that happen to be connected.

Adjusting Impeller Trim for Fixed-Speed Applications

Not every installation has or needs a VFD. For fixed-speed pumps, flow optimization comes from selecting the correct impeller diameter. CNSME impellers are available in a range of trim sizes for each pump model. A larger diameter produces more flow and head. A smaller diameter produces less. The factory can machine the impeller to any diameter within the allowable range for your specific pump size. The goal is to select a trim that puts your required operating point close to the pump’s best efficiency point. Operating at the BEP minimizes vibration, reduces wear, and consumes the least energy for the flow delivered. If you have an existing pump that is oversized, you can often have the impeller trimmed down rather than replacing the entire pump. This is a low-cost optimization. Trim the impeller, reinstall it, and your flow drops to the desired level without changing anything else. The only caution is that impeller trim has limits. Removing too much material reduces vane overlap and can cause recirculation. CNSME provides minimum trim diameters for each impeller; stay above those numbers.

Controlling Flow with Discharge Valves

The simplest flow control method is a throttling valve on the discharge pipe. Closing the valve increases system head, which moves the operating point left on the pump curve, reducing flow. This method is effective but inefficient. Throttling wastes energy because the pump is still producing full flow, but the valve is blocking part of it. That blocked energy turns into heat and noise. For continuous operation, throttling is rarely the best choice. However, for short-term adjustments or for systems where the pump is significantly oversized, throttling can be acceptable. CNSME recommends using a valve designed for throttling service—typically a gate valve or a V-port ball valve, not a standard isolation gate valve. Throttling also works well in combination with a VFD. You can run the VFD at a fixed speed that is close to optimal, then use a valve for fine adjustments. This hybrid approach gives you the energy savings of VFD control with the precise flow tuning of a valve.

Managing Suction Conditions for Stable Flow

Flow optimization is not just about the pump; it is about what goes into the pump. Poor suction conditions cause flow instability, cavitation, and air ingestion, all of which ruin your carefully optimized flow rate. CNSME vertical pumps are less sensitive to suction problems than horizontal pumps because the impeller sits directly in the sump. But you still need to manage a few things. Keep the sump level high enough to prevent vortexing. Install a vortex breaker if needed. Ensure the intake screen or bar grid is not clogged with debris. For sumps with stratified layers—clear water on top, dense slurry below—position the pump intake in the denser layer if you want higher solids flow, or in the water layer if you want to minimize solids. Understanding your sump’s stratification pattern allows you to select the correct intake depth when ordering the pump. CNSME can supply extended or shortened intake bells to target specific layers. This suction management is a form of flow optimization that costs nothing but attention.

Adjusting Impeller Clearance to Maintain Flow Over Time

Here is a flow optimization practice that many operators overlook. As the impeller and volute liner wear, the clearance between them increases. That increased clearance allows slurry to recirculate inside the pump instead of being discharged. Your motor draws the same amperage, but flow drops. You might be tempted to speed up the pump or open a valve further to compensate. The better solution is to restore the original clearance. CNSME vertical pumps have an external clearance adjustment mechanism. By loosening lock nuts and turning adjustment screws, you move the impeller closer to the liner, closing the gap. This adjustment takes less than an hour and requires no disassembly. Perform it every few months or whenever you notice a flow drop of more than five percent. Restoring clearance brings flow back to near-original levels without changing speed or valve position. This is the most cost-effective flow optimization you can do on a running pump.

Matching Pump Size to System Requirements

The most fundamental flow optimization happens before you buy the vertical slurry pump. An oversized pump running throttled or at reduced speed is less efficient than a correctly sized pump running at full speed. An undersized pump running at overspeed may cavitate or wear rapidly. CNSME application engineers use system analysis to match pump size to your actual requirements. They consider peak flow, average flow, static head, friction losses, and future expansion plans. The result is a pump selection that operates near its best efficiency point for most of its runtime. If your flow requirements vary widely, they may recommend two smaller pumps rather than one large one. Running one pump for low flow and both for high flow gives you better efficiency across the range than a single pump with a VFD. This is the classic “pump sizing” decision, and getting it right prevents years of suboptimal operation. CNSME provides detailed system analysis as part of their selection service, free of charge for qualified projects. Taking advantage of this service is the single best step you can take toward optimized flow rates.

Monitoring Flow with Instruments and Logs

Finally, you cannot optimize what you do not measure. Every CNSME vertical pump installation should include a flow meter on the discharge line. Magnetic flow meters work well for conductive slurries. Ultrasonic clamp-on meters work for non-conductive materials. Record flow readings daily or automatically log them. Compare current flow to baseline flow from when the pump was new. A gradual decline indicates normal wear and tells you when to adjust clearance. A sudden drop indicates a problem: a clogged intake, a closed valve, or a broken impeller. A sudden increase might indicate a hole in the discharge pipe or a change in sump level. Without flow measurement, you are flying blind. With it, you can fine-tune pump speed, clearance, and valve position to maintain optimal flow indefinitely. Many CNSME customers install flow meters as part of the original pump purchase, recognizing that the meter pays for itself in energy savings and reduced wear within the first year.
